Twisted Tubes |
|||||||||||||||||||||
|
|||||||||||||||||||||
| What is twisted tube? | |||||||||||||||||||||
| Twisted tube is a kind of enhanced heat transfer tubes that firstly presented by Swedish Alards Company, and then improved by the USA’ Koch Heat Transfer Company, LP. | |||||||||||||||||||||
| Structure and manufacture of twisted tube | |||||||||||||||||||||

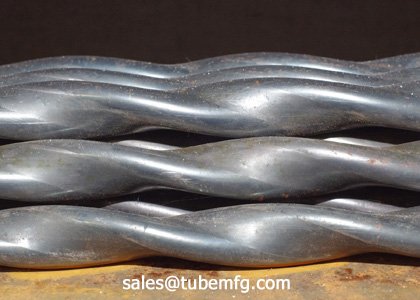

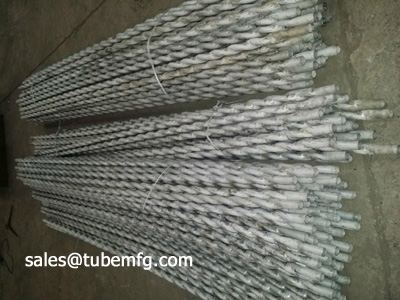

The structure feature of twisted tube is that every cross section is an oval, when assembled into heat exchangers they can be mixed bundles (that is, the mix of twisted tubes and bare tubes), and also can be a pure twisted tube bundle. The manufacturing process of twisted tube includes:"partial pressure" and "distortion". The tube’s cross section is nearly an ellipse, of which the ratio of long axis and short axis is designed according to the flow velocity in tubes passes and shell passes of heat transfer tubes. When the flow rate in tube pass is low, the ratio of the long axis and short axis shall be increased, or the flow surface shall be reduced in order to increase the flow rate. |
|||||||||||||||||||||
| Enhanced heat transfer principles of twisted tube | |||||||||||||||||||||
| The unique structure of twisted tube can make the flow in tube pass and shell pass in the spiral motion at the same time, by this way it enhanced the turbulent intensity. The heat transfer coefficient of the twisted tube is 40% higher than the normal one, but the pressure drop is almost the same. | |||||||||||||||||||||
| Advantages of heat transfer with twisted tube | |||||||||||||||||||||
| 1. Lower pressure drop: no baffle plate, lower pressure drop in the shell pass; 2. Higher heat transfer efficiency: it can increase the burbulent intensity, make the shell flow velocity and the direction change regularly, and enhance the mixture in lengthways; 3. Less deposit: no blind zone in the shell. |
|||||||||||||||||||||
| Application of the twisted tube | |||||||||||||||||||||
| As twisted tube has been fast developed and improved in recent years, it is much more reliable and effective, which can almost be used in all kinds of shell and tube heat exchangers, which can be used in gas-gas, liquid-liquid and liquid-gas heat transfer process, including chemistry, petroleum, food, papermaking, electric power, metallurgy, mining, and urban heating industries. | |||||||||||||||||||||
