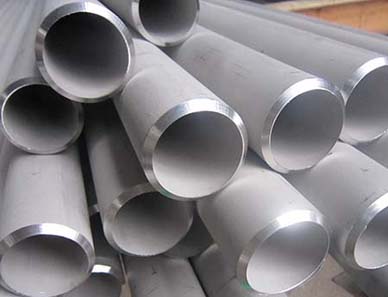

ASTM B407 Standard Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube
Standard: ASTM B407
Material: UNS N08811
Equivalent Material: 1.4958, Incoloy 800HT, 1Cr20Ni32AlTi, X5NiCrAlTi31-20
Chemistry Composition
Ni, %
Cu, %
Fe, %
Mn, %
C, %
Si, %
S, %
Cr, %
Al, %
Ti, %
30.0-35.0
0.75 max
39.5 min
1.50 max
0.06-0.10
1.00 max
0.015 max
19.0-23.0
0.15-0.60
0.15-0.60
Mechanical Properties
Tensile Strength , MPa
Yield Strength, MPa
Elongation, %
450 min
170 min
30 min
Hot-finished Annealed
450 min
170 min
30 min
Cold-worked Annealed
Outside Diameter & Tolerance
Outside Diameter, mm
Tolerance, mm
Cold-Finished
12.7≤OD<15.8
±0.127
15.8<OD≤38.1
±0.19
38.1<OD≤88.9
±0.254
88.9<OD≤114.3
±0.381
114.3<OD≤152.4
±0.508
152.4<OD≤168.3
±0.635
Hot-Finished
63.5≤OD<139.7
±0.787
139.7≤OD≤234.9
±1.19
Wall thickness & Tolerance
Outside Diameter, mm
Tolerance, %
Average Wall
Minimum Wall
Cold-Finished
12.7≤OD<15.8
±15.0
-
15.8<OD≤38.1
±10.0
-
38.1<OD≤88.9
±10.0
-
88.9<OD≤114.3
±10.0
-
114.3<OD≤152.4
±12.5
-
152.4<OD≤168.3
±12.5
-
Hot-Finished
63.5≤OD<139.7
±12.5
+28.5/-0
139.7≤OD≤234.9
±12.5
+28.5/-0
Length: 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; 12000mm; and so on.
Max developed length: 32 meters, also U bending can be offered, each leg length can be 15.24 meters.
Keyword: ASTM B407, Nickel-Iron-Chromium Alloy Tube, Seamless Pipe, Seamless Tube, UNS N08120, UNS N08800, UNS N08801, UNS N08810, UNS N08811, UNS N08890, UNS N06811
More information about Incoloy 800, Incoloy 800H, Incoloy 800HT
Incoloy 800, Incoloy 800H, Incoloy 800HT, also named as Alloy 800, Alloy 800H, Inconel 800, Alloy 800HT are nickel-iron-chromium alloys with good strength and excellent resistance to oxidation and carburization in high-temperature exposure. These nickel steel alloys are identical except for the higher level of carbon in alloy 800H, and the addition of up to 1.20 percent aluminum and titanium in alloy 800HT. Incoloy 800 was the first of these alloys and it was slightly modified into Incoloy 800H. This modification was to control carbon (.05-.10%) and grain size to optimize stress rupture properties. Incoloy 800HT has further modifications to the combined titanium and aluminum levels (.85-1.20%) to ensure optimum high temperature properties. The nickel alloy is dual certified (800H/HT) and combines the properties of both forms. Incoloy 800H/HT alloy was intended for high temperature structural applications. The nickel content makes the alloys highly resistant to both chloride stress-corrosion cracking and to embrittlement from precipitation of sigma phase. The general corrosion resistance is excellent. In the solution annealed condition, alloys 800H and 800HT have superior creep and stress rupture properties.
Incoloy 800 is primarily used in applications with temperatures up to 1100° F, where alloys 800H and 800HT are normally used in temperatures above 1100° F where resistance to creep and rupture is required. The chemical balance allows the nickel steel alloy to exhibit excellent resistance to carburization, oxidation and nitriding atmospheres. Incoloy 800HT will not become embrittled even after long periods of usage in the 1200-1600° F range where many stainless steels become brittle. Excellent cold forming characteristics typically associated with the nickel-chromium alloys are exhibited with 800HT. When cold formed extensively the grain size produces a visibly undulated surface called “orange peel”. Incoloy 800HT can be welded by the common techniques used on stainless steels.

The characteristics of Incoloy 800, Incoloy 800H and Incoloy 800HT

- High temperature strength
- High creep rupture strength
- Resistant to oxidation and carburization in high temperature environments
- Good corrosion resistance in many acidic environments
- Good resistance to many sulfur-containing atmospheres

The applications of Incoloy 800, Incoloy 800H and Incoloy 800HT

- Ethylene furnace quench boilers
- Hydrocarbon cracking
- Valves, fittings and other components exposed to corrosive attack from 1100-1800° F
- Industrial furnaces
- Heat-treating equipment
- Chemical and petrochemical processing
- Super-heater and re-heaters in power plants
- Pressure vessels
- Heat exchangers

Alloys 800H/HT are used in a variety of applications involving exposure to corrosive environments and high temperatures such as heat treating equipment, chemical and petrochemical processing, nuclear power plants and the paper pulp industry. Heat-treating equipment such as baskets, trays, and fixtures employ Incoloy 800H/HT. Chemical and petrochemical processing industries use the alloys for heat exchangers and other piping systems in nitric acid media especially where resistance to chloride stress-corrosion cracking is required. Power plants use them for super-heater and re-heater tubing.
